Customizing Marker Size and Design

Guide: Customizing Marker Size and Design

1. Customize marker design per series in the Basic Editor

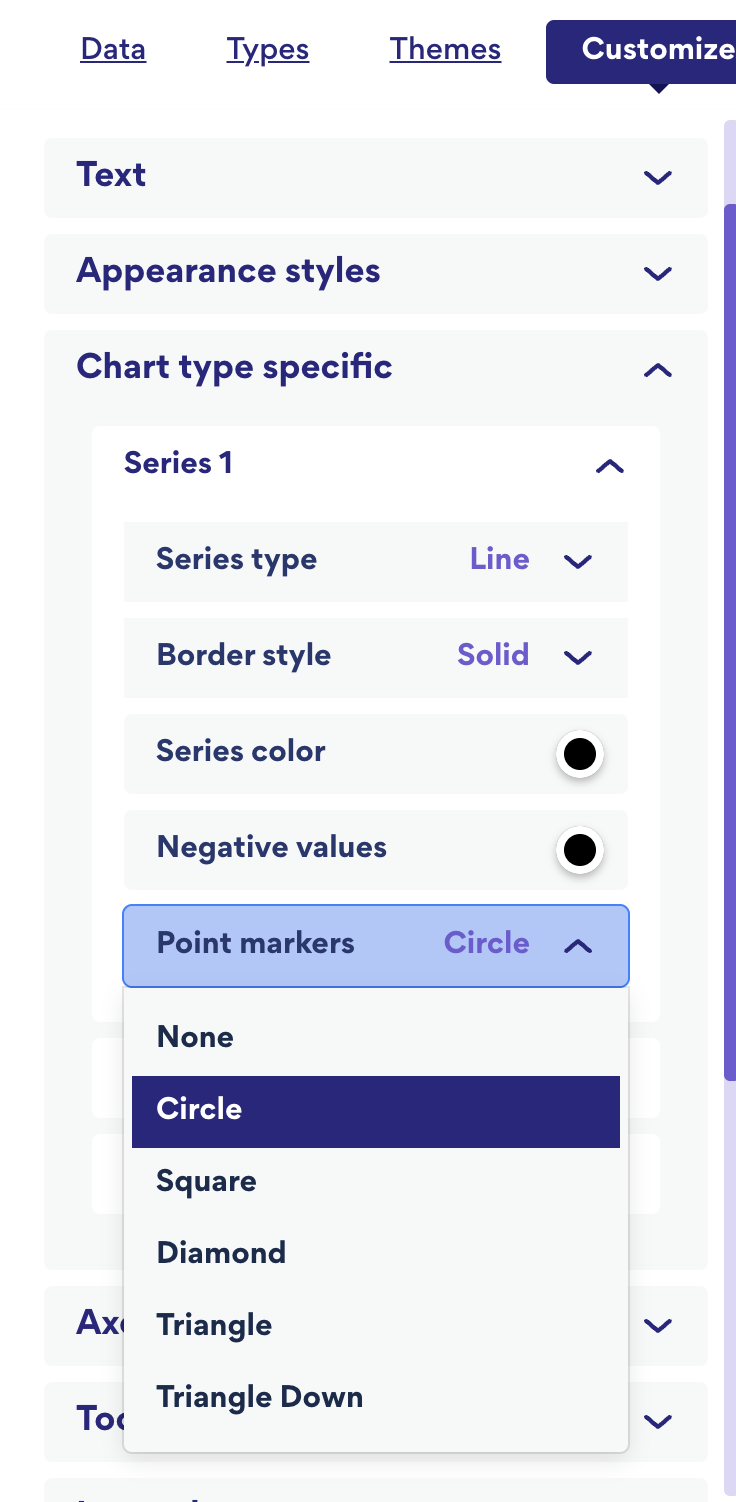

1. Navigate to Customize > Chart type specific.
2. Expand the Series you wish to edit.
3. Open the Point Marker dropdown.
4. Select from the available shapes:
   • None, Circle, Square, Diamond, Triangle, or Triangle-down


2. Global Styling (Advanced Editor)

Use this if you want every data point in your chart to look the same.

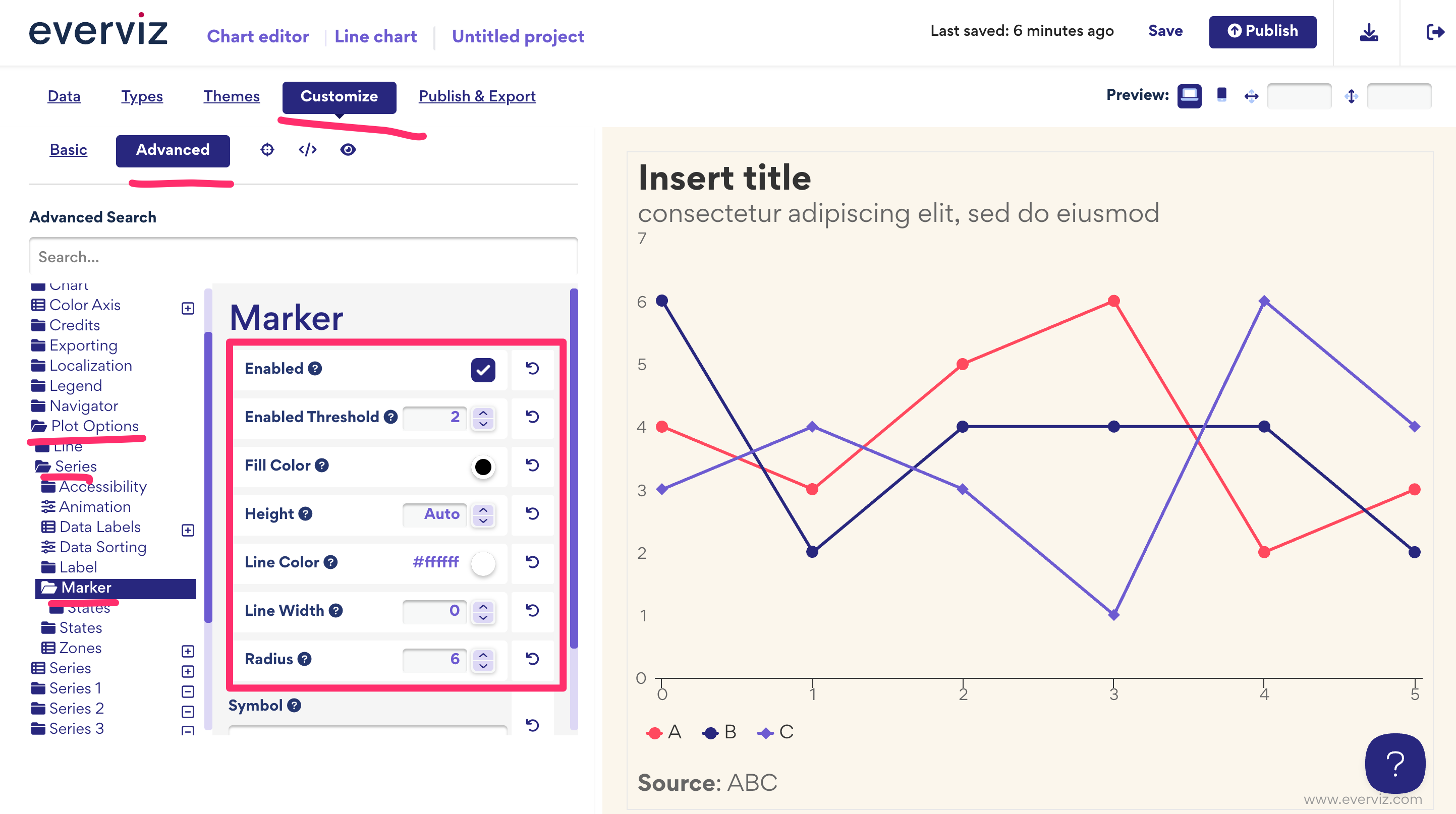

1. Navigate to Advanced > Plot Options > Series.
2. Open the Marker section.
3. Change Design: Use the Symbol dropdown.
4. Change Size: Adjust the Radius field.
   Note: A radius of 4 or 5 is standard; larger numbers will increase the point size significantly.

3. Individual Series Styling (Advanced Editor)

Use this to distinguish between different data categories (e.g., "Actuals" vs. "Targets").

1. Navigate to Advanced > Series.
2. Expand the specific series (e.g., Series 1).
3. Open the Marker sub-menu.
4. Adjust the Symbol or Radius for just that specific data set.
